No more listening fatigue
No more annoying noise and distortions
Complete sonic neutrality, Just PURE sound!
100W TDA7293 BASED ULTRA-LOW DISTORTION KIT
NO HEATSINK
Specs:
Frequency response: 20Hz – 20kHz (±0.5dB)
Continuous output power: 100W (Rl= 4 Ohm) / 90W (Rl = 8 Ohm)
Input Sensitivity: 0.9V (4 Ohm) / 1.27V (8 Ohm)
THD% + noise – 0.00014% (1kHz, 10W)
HOW TO ORDER BY EMAIL – JUST SEND ME UN EMAIL AT SUPPORT@KALTECS.COM
Price – $109.99

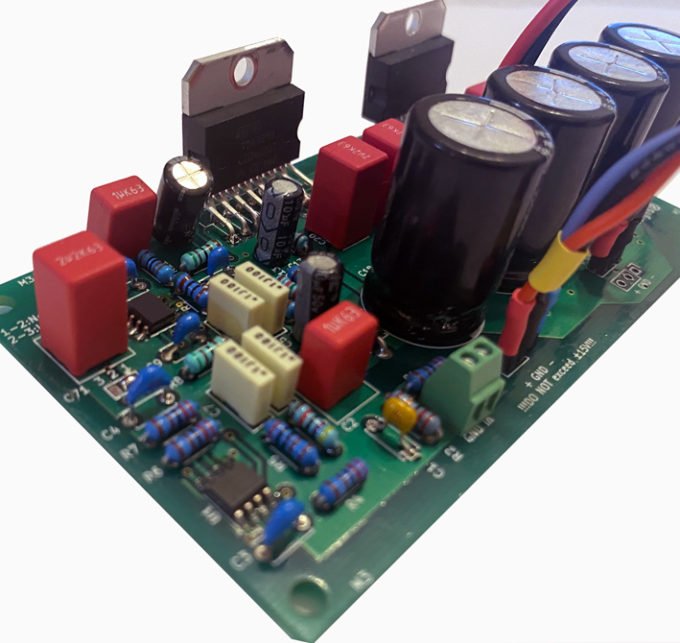

Ultra-low distortion audiophile amplifier kit based on TDA7293
100W TDA7293 BASED ULTRA-LOW DISTORTION KIT
WITH LOW NOISE AND RIPPLE POWER SUPPLY,
COMPLETELY ASSEMBLED AND TESTED
NO HEATSINK
Specs:
Frequency response: 20Hz – 20kHz (±0.5dB)
Continuous output power: 100W (Rl= 4 Ohm) / 90W (Rl = 8 Ohm)
Input Sensitivity: 0.9V (4 Ohm) / 1.27V (8 Ohm)
THD% + noise – 0.00014% (1kHz, 10W)
PSU Specs:
Output voltage +/-15V
Noise < 1uV (20Hz-20kHz)
PSSR – 80dB
Inout voltage – min +/-22V, max +/-42V
Output voltage – +/-15V
Output current – 60mA (max)
HOW TO ORDER BY EMAIL – JUST SEND ME UN EMAIL AT SUPPORT@KALTECS.COM
Price – $119.99
Ultra-Low Distortion 100W Audiophile Amplifier Kit based on TDA7293 Incl. Low-Noise and Ripple PSU.

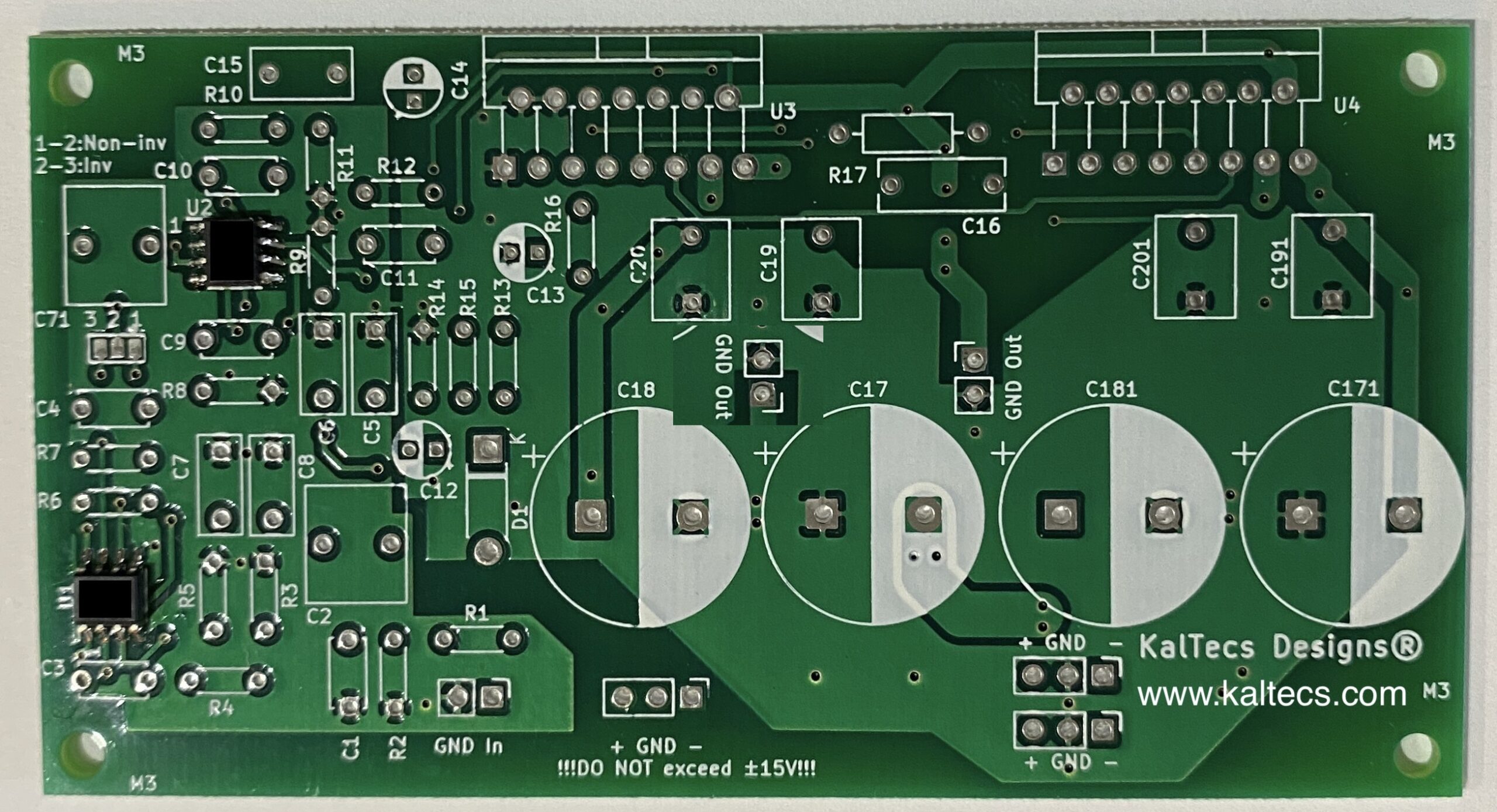

100W TDA7293 BASED ULTRA-LOW DISTORTION KIT – pcb only with soldered op amps
For those with advanced DIY skills is my 60W TDA7293/94 PCB with a soldered op amp.
After the purchase you’ll receive all documentation needed to assemble the board – BOM, extensive instructions, a guide to soldering
It takes between 30 – 90 minutes to populate the PCB
100W Ultra Low Distortion Amplifier Kit TDA7293 PCB with soldered op amps
Price – Ask support@kaltecs.com
Ultra Low distortion composite audiophile amplifier kits TDA7293 TDA7294. The magic of the ultra low distortion amplifiers. No more listening fatigue
